Supplies Needed
- T 20 Bit

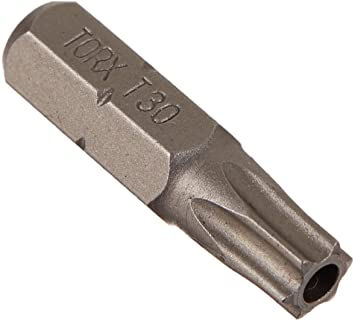

- T30 Bit
Write or print out the following information to include in your package
- Name
- Email (The one you contacted us with)
- Return Shipping Address
- Ticket Number

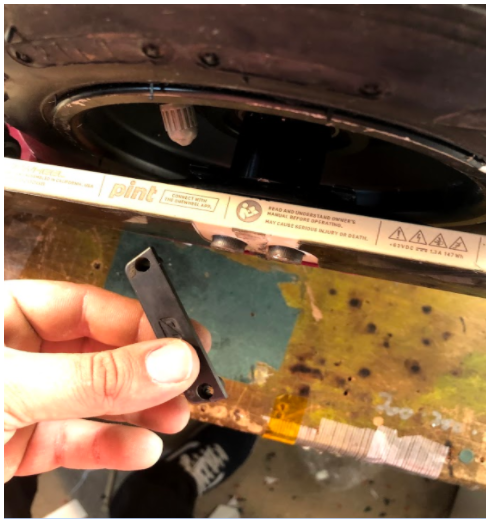

Step 2) Remove the two wire protectors on the rails

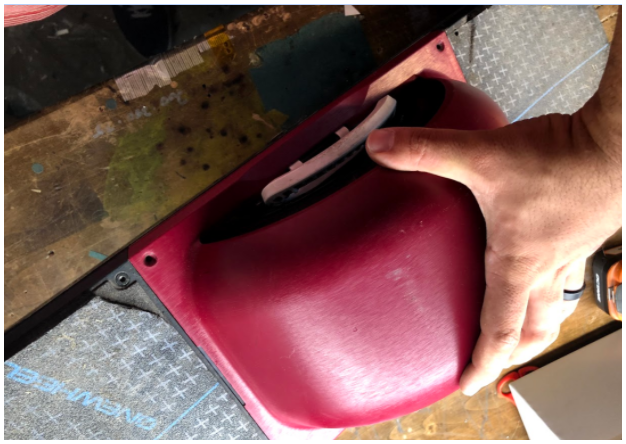

Step 3) Remove any fender or fender delete options

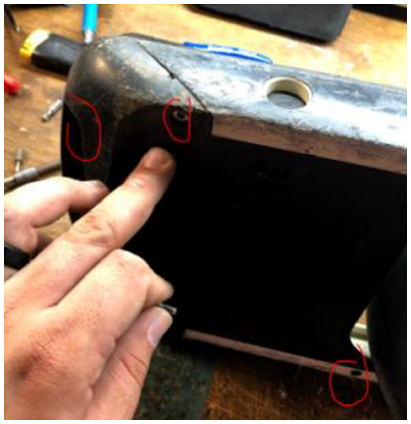

Step 4) On the battery side (Heavy side) remove the 4 screws and pull out the bumper

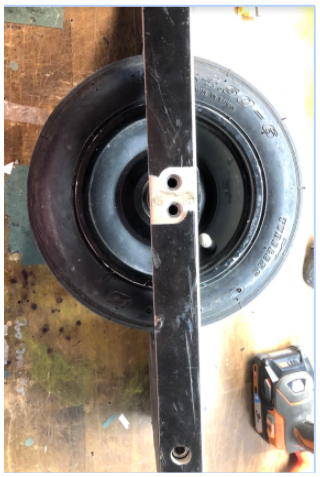

Step 5) Turn the board on its side and remove the two screws holding the motor on (Charge port side)

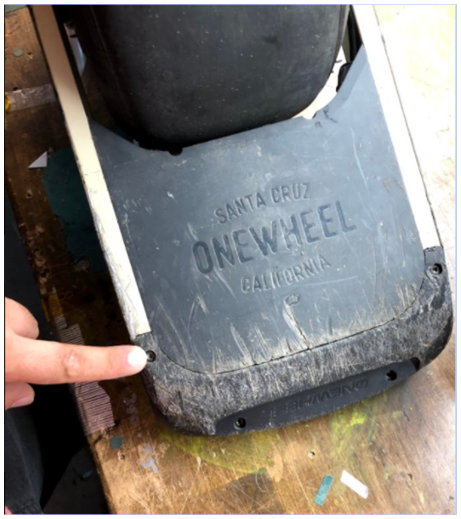

Step 6) Remove the 4 screws under the rear footpad

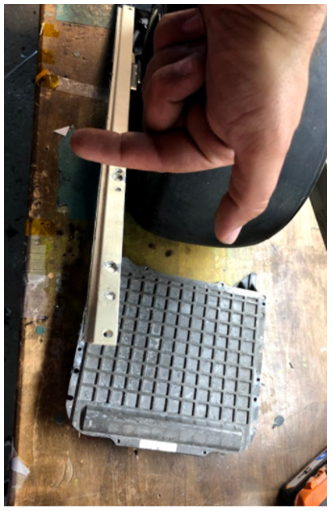

Step 7) Pull the loose rail to the side to allow for the battery module to release

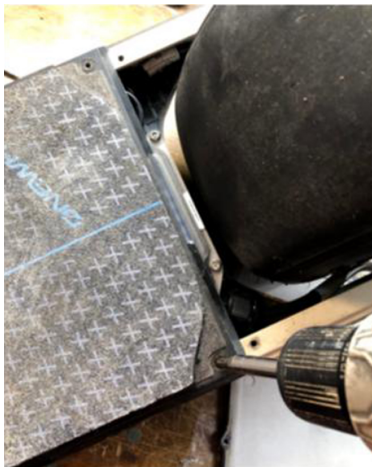

Step 8) Remove the 2 screws on the front foot pad
Step 9) Remove the 6 screws under the front control module
Step 10) Remove the bumper and plastic plate

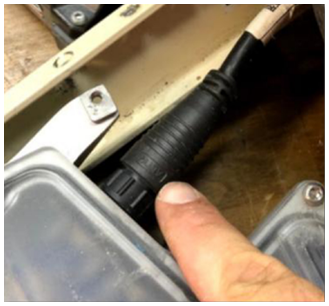

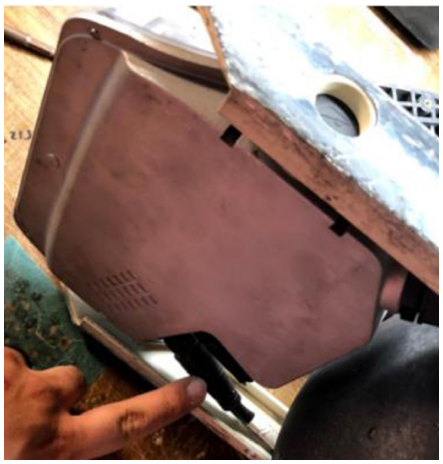

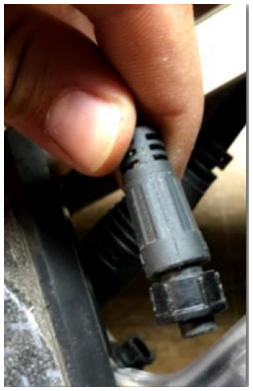

Step 11) Unplug the front foot pad and the motor connector (twist and pull)

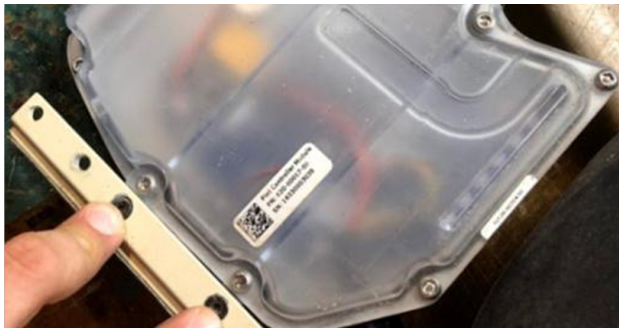

Step 12) Unscrew the 4 screws that secure the control module
Step 13) Take out both the control and battery housing to send in
Step 14) Fold them together as shown below

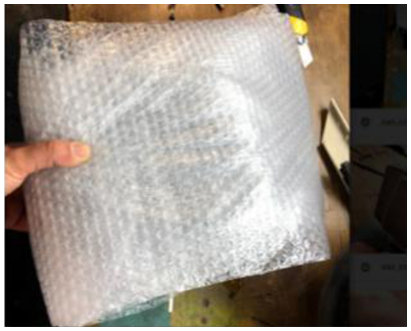

Step 15) Wrap the modules very well with plenty of insulation and include the info sheet you made in the box. Ship with the provided label.
Ship to:
ChiBatterySystems
9910 W. 190th St Ste B
Mokena IL 60448-5607
